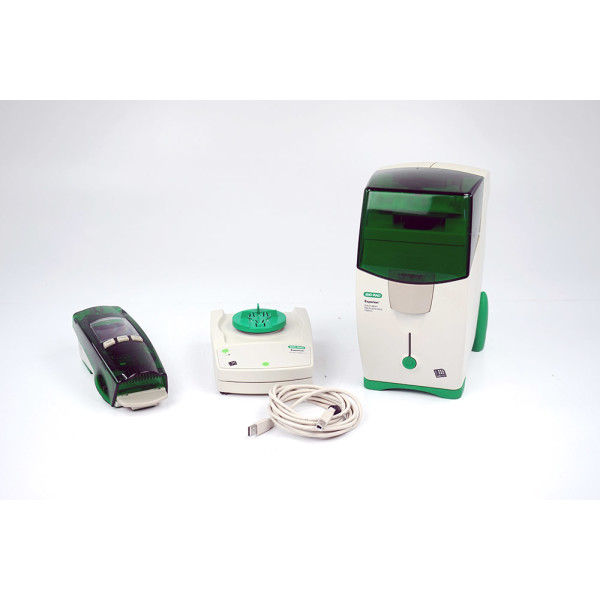

Bio-Rad Experion Electrophoresis Station + Priming Station + Vortex Station II

SKU: 2635

Category: Sonstiges

Currently out of stock

2.975,00 €

Final price* , plus (Paket)

Description
Notify me when this item is available

Manufacturer: Bio-Rad

Model: Experion Automated Electrophoresis Station + Priming Station + Vortex Station II MS 3 B + USB2 Connecting Cable

S/N (Experion Automated Electrophoresis Station): 263BR 3584
S/N (Experion Priming Station): 264BR 3537
S/N (Experion Vortex Station II MS 3 B): 03.362989

YoM: 2012

Description:

The Experion automated electrophoresis system employs LabChip microfluidic technology to automate protein and nucleic acid electrophoresis. It integrates separation, detection, and data analysis within a single platform. Using much smaller sample and reagent quantities than standard analysis methods, the Experion system accomplishes analysis in a single 30–40 minute, automated step.

The Experion System Components:

- Electrophoresis Station:
The Experion electrophoresis station houses all the electrical, optical, and hardware components necessary to perform the separation, staining, destaining, detection, and imaging of samples in a single step. The electrophoresis station is equipped with an internal universal power supply that operates at 100–240 VAC, 50–60 Hz.
- Priming Station:
The Experion priming station is used to prepare the microfluidic chips for sample analysis. The priming station applies pressure to the priming well of the chip and fills the network of microchannels with the gel-stain solution (a mixture of Experion gel and stain).
- Vortex Station:
The Experion vortex station ensures complete mixing of RNA or DNA samples and loading buffers in the chip wells. The vortex adapter securely holds the chip during the 1 min vortex cycle. The vortex station is used for nucleic acid analysis only and not required for protein analysis.

Applications:

- Protein analysis — quantitation and size determination (sizing) of protein samples useful for quality control, protein purity and stability analysis, protocol optimization, and evaluation of recombinant protein expression
- RNA analysis — evaluation of RNA integrity and concentration. The system automatically generates the RNA quality indicator (RQI), a quantitative integrity assessment, in addition to visual electropherogram data, ribosomal RNA ratios, and concentration data. This makes Experion RNA asays useful upstream of applications such as real-time quantitative PCR (qPCR), microarray analysis, sequencing, and reverse-transcription qPCR (RT-qPCR)
- DNA analysis — quantitation and sizing of restriction digests, amplified DNA, microsatellites, and amplified fragment length polymorphisms (AFLPs)

Specifications:

Electrophoresis Station:
Material:
- Casing: ABS, polycarbonate (gray)
- Lid: Polycarbonate (translucent green)
- Open latch: Polycarbonate (khaki)
- Rubber feet: Thermoplastic rubber
- Power button: ABS, polycarbonate (green)
Technical:
- Power supply: 100–240 VAC, 50/60 Hz, 40 VA
- Power indicator: LED
- Electrode wires: 90% Platinum, 10% iridium alloy, 0.5 mm diameter
- Laser: Photo diode, 635 nm excitation
- Laser: Safety Class 1 product (nonhazardous)
- Detector: Photoemission, 685 nm emission
- Fuse: 250V T 2A, 5 x 20 mm
- Operating conditions: 15–40°C, 0–90% humidity
- Computer connection: USB2 cable
- Dimensions: 15 x 31 x 29 cm
- Weight: 4.58 kg

Priming Station:
Material:
- Base casing: Glass-filled polycarbonate (gray)
- Lid: Polycarbonate (translucent green)
- Open latch: Polycarbonate (khaki)
- Rubber feet: Thermoplastic rubber
- Priming seal: Silicone rubber
Technical:
- Power supply: 100–240 VAC, 50/60 Hz
- Max. Power: 15 W
- Input: 12 VDC
- Pressure range: 50–125 psi
- Time range: 30–150 sec
- Display: LCD
- Dimensions: 9.5 x 26 x 7.5 cm
- Weight: 1.36 kg

Vortex Station II MS 3 B:
Material:
- Casing: Zinc die cast
- Paint on casing: Polyester powder coating (gray)
- Front panel: Polyester
- Vortex adapter: Polycarbonate (green)
Technical:
- Power adapter: Input 100–240 VAC, 50/60 Hz; Output 24 VDC, 800 mA
- Time setting: 60 sec
- Eccentric orbital movement: 4.5 mm
- Dimensions: 14.8 x 6.3 x 20.5 cm
- Weight: 2.9 kg

Items delivered:

- Experion Automated Electrophoresis Station
- Experion Priming Station
- Experion Vortex Station II MS 3 B
- USB2 Connecting Cable
- Instruction Manual as PDF via E-Mail request

Condition:

The entire Experion System is in excellent cosmetic as well as working condition. It is 100% functional tested and ready to be operated.

Brand:	Bio-Rad
Shipping weight:	20,00 kg
