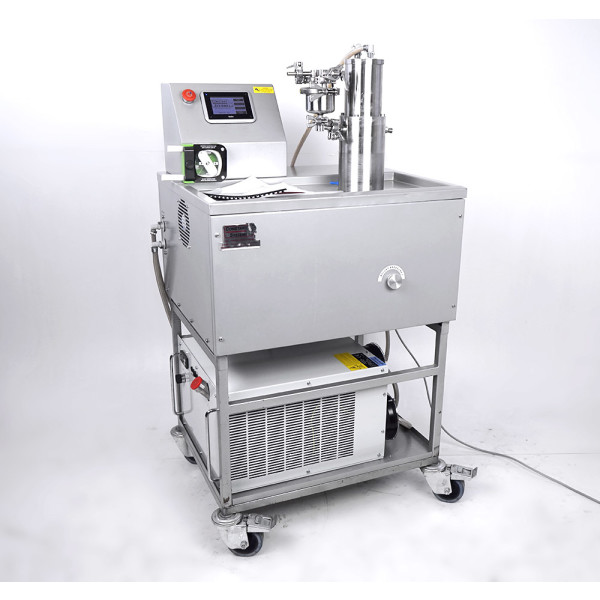

Manufacturer: Constant Systems
Model: CF1
Description:
With a footprint of approximately 700mm², the CF1 is small enough to be bench mounted if required, but is best suited for use on its customised trolley. The CF1 trolley ensures that the unit is at the optimum working height and is mounted on swivelling and lockable castors that allow the unit to move safely and freely when required. The CF1 is recommended for processing volumes in the range of 15 ml to 10 litres. For processing larger volumes in this range, the CF1 can be offered with an integrated peristaltic pump, which is fully controlled via the HMI and ensures that the inlet reservoir is
is continuously fed while the sample is recirculated to avoid settling until the entire sample has been processed.
Key features:
- Simple, fast and easy to use
- No need for compressed air or bottled gas, only a standard power connection required
- The device does not need to be vented or purged before use. Any air in the system is simply processed without affecting the sample or device
- The design includes a stainless steel tray to catch accidental spillages
- Interrupt pressure is digitally displayed and can be easily and accurately adjusted between 1-40 kpsi
- Can process liquid, resuspended, viscous, tissue, plant and frozen sample types
Technical data:
Process volume: max. 10 litres
Dead volume: 1 mL (0.3-0.5 mL with OneShot Head Adapter OSHA)
Minimum volume: 10 mL (1mL with OSHA)
Cycles: 100 mL/min
Pressure: up to 2700 bar (40,000 PSI)
Sample type liquid: (OSHA)
Fixed nozzle: yes
Sample cooling: yes (optional)
Compressed air required: no
Dimensions: (H x W x D) 74 x 70 x 62.5 cm
Weight: 110-130 kg
The device is in absolute top condition and has been 100% tested for function.
