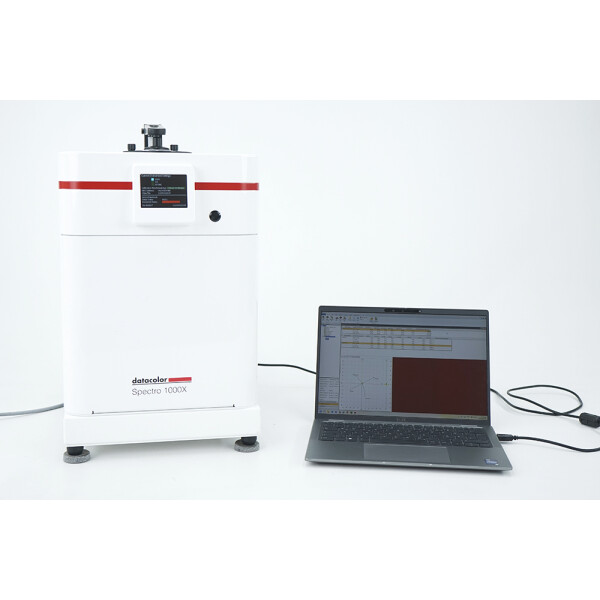

Datacolor Spectro 1000X Vertical High Precision Benchtop Spectrophotometer

SKU: 8803

Category: Systeme

Currently out of stock

17494,79 CHF

Final price* , plus (Spedition)

Datacolor

Description
Notify me when this item is available

Manufacturer: Datacolor

Model: Spectro 1000X Vertical

Device type: Vertically constructed high-precision benchtop spectrophotometer

Descriztion

The Spectro 1000X is the vertical setup in Datacolor's Spectro 1000 series – ideal for measuring liquid, pasty, powdery or granulated samples. In contrast to horizontally aligned devices, it measures samples from above, which makes them easy to handle, especially with uneven or soft materials. With the highest precision and consistency in the color measurement range, the device supports quality assurance and color analogy in industries such as textiles, paints, plastics, cosmetics or medical device production.

The device is prepared for network operation, has an integrated camera for sample positioning, LCD display panel and a sample temperature sensor to ensure reproducible measurement conditions.

Specifications

Measuring geometry: d/8° with specular component (SCI/SCE)
Light source: Pulsed xenon lamp filtered on D65 simulation
Wavelength range: 360–700 nm, with 10 nm measurement intervals
Glass Integral Integrator Ball: 152 mm
Detector: Dual‑Beam SPX spectral analyzer with 256 diode array
Repeatability (CIELAB): ≤0.01 (max) with white calibration
Inter-Instrument Agreement: A 0.08 / max 0.15 dE (reflection mode)
Sample temperature: Integrated sensor, ±0.5 °C accuracy

Technical details

Display: 3.5 × 240 pixels RGB LCD
Zoom lenses: Automatic 4‑position zoom (LAV, SAV, USAV, etc)
Aperture selection: Automatically identifiable openings (e.g. B. LAV, MAV, USAV, XUSAV)
UV calibration: Automatically adjustable UV blocking filters (400 / 420 / 460 nm)
Touchable button: With sample camera preview and measurement start function
Electric: 100–240 V AC, about 80 VA consumption
Interfaces: USB 2.0 and Ethernet possible
Dimensions (WxDxH): about 40 × 41 × 48 cm
Weight: about 23 kg (50–52 lbs)
Ambient range: 5 – 40 °C, relative humidity 20 – 85% (non-condensing)

Condition

The device is completely overhauled and is in excellent condition. All measuring functions work precisely, the accessories such as calibration plates and connection cables are fully available. The dimensions and mechanics are according to specifications – ready for immediate laboratory Operation.
