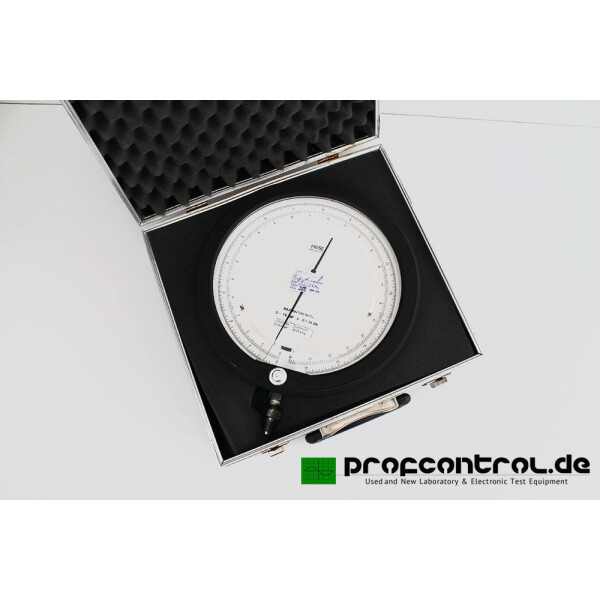

HEISE MODEL CM Reference Dial Pressure Gauge 0-1.6 bar 0-24 psi Accuracy 0.1 %

SKU: 567

GTIN: Nicht zutreffend

Category: ELECTRONIC EQUIPMENT

Currently out of stock

595,00 €

Final price* , plus (Paket)

HEISE, USA

Description
Notify me when this item is available

one PRECISION DIAL PRESSURE GAUGE

Manuf: HEISE / USA

Model: CM

S/N: 41379

WITH OPTION ........ TEMPERATURE COMPENSATION .... from -25 °F to +12 °F
with Bourdon Tube .either STAINLESS STEEL .... or ....COPPER BERYLLIUM ( depending to pressure range )
Diameter of DIAL FACE is 8 1/2 inch............220 mm
DIAL with MIRROR BAND and KNIFE EDGE POINTER for parallaxe free reading
BLEEDER TIP for flushing Bourdon tube

Pressure Measuring Range: ( DIAL with double indication )

0 bar to 1.6 bar
0 psi to 24 psi

Absolute Accuracy ....................better 0.1 % .............Class 4A............Klasse 0,1
Angle of pointer on dial.............350 Degrees

all extensive informations about this instrument can be found on ASHCROFT - HEISE website; including Operating and Service Manuals

heise.com/Products/gauges/upload/I-M002-10134-8-05.pdf

instrument is in excellent cosmetic condition, 100 % fucntional , last calibrated ( GERMAN GOV LAB ) SEPTEMBER 2012

comes with the HEISE original Case

The actual catalogue price of this instrument is > 3500 Euros

Shipping weight:	10,00 kg
