Manufacturer: Keyence

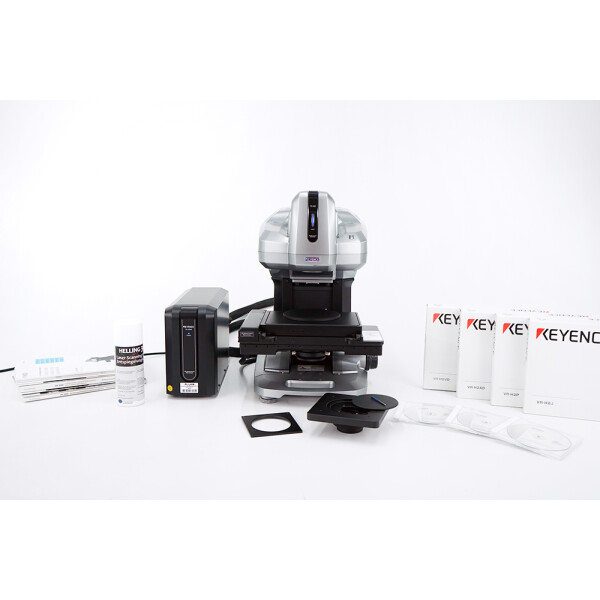

Model: VR-3100 3D profilometer microscope system (including VR-H2J, VR-H2P, VR-H2AD, VR-H2VD)
SN: 3C710111
Description:
The Keyence VR-3100 is a state-of-the-art 3D profilometer and microscope system that enables contact-free measurements of surface structures with high precision and speed. It’s part of the VR-3000 series and combines optical 3D acquisition with advanced analysis functionality - ideal for quality control, materials research, material testing and microstructure investigations.
The system consists of several modules:
VR-H2J: Main unit / base station
VR-H2P: Precision measuring head
VR-H2AD: Adapter unit
VR-H2VD: Vacuum recording unit for sensitive or irregular samples
With just one click, the VR-3100 delivers complete 3D surface profiles, including roughness, flatness, volume measurement and cross-section analysis - without sample preparation or destruction.
Specifications:
Measuring principle: white light interferometry & confocal imaging
Resolution: vertical up to 0.5 μm / horizontal up to 0.1 μm
Measuring range (XYZ): up to 200 100 50 mm (depending on configuration)
Measurement time: few seconds per scan
Functions: roughness measurement (Ra, Rz etc.), flatness, volume, 3D rendering, profile analysis
Software: Integrated VR analysis platform
Technical details:
Dimensions: main unit about 35 55 50 cm
Weight: about 20 kg (total, depending on configuration)
Power supply: 100-240 V, 50/60 Hz
Interfaces: USB, LAN, VGA/HDMI
Operation: via PC with monitor & software (not included)
Condition:
The system is in very good used condition, fully tested and ready for immediate use.
