Mettler Thornton Conductivity/Resistivity Sensor 0.1 cm-1 1/2” 240-213

SKU: 717

GTIN: Nicht zutreffend

Category: Elektroden & Sensoren

Currently out of stock

357,00 €

Final price* , plus (Paket)

Mettler Toledo / Thornton

Description
Notify me when this item is available

Manufacturer: Mettler Toledo / Thornton

Model: Conductivity, Resistivity Sensor 1/2 DIN

P/N: 58 031 213 (240-213)

S/N: 07081870

Specifications Conductivity/Resistivity Sensor:

Cell Constant Accuracy:    ± 1% except ± 5% system accuracy for 4-E and 240-401 sensors (sensor &
        transmitter calibrated as a matched-pair system at start up)
Cell Constant Repeatability:   ± 0.25% except ± 2% for 4-E sensors
Temperature Sensor:     Pt1000 RTD, IEC 60751, Class A
Temperature Accuracy:    ± 0.1 °C at 25 °C, except 4-E sensors
Cable Jacket Material/Temp. rating:  PVC, 80 °C; except 0.1 constant sanitary & 0.4 constant–PTFE, 200 °C
Maximum Sensor Distance:   200 ft (60 m) except 50 ft (15 m) for 244-series
Finish (Sanitary 0.1cm-1 Sensors):  Ra 8 microinches (0.2 micrometers), 316L SS is electropolished
Insulator Material:     PEEK (0.1, 0.4 and 0.01 constant sensors)

US & Canada Part No.:    240-213
International Part No.:    58 031 213
Fitting:       1/2” NPTM
Insertion Length “X” in (mm):   1.14 (29)
Cable Length ft (m)/Connector:   1.5 (0.5)/S
Fitting/Body Material:    Nory
Range (µS/cm):      0.02-2,000
Cell Const. (cm-1):     0.1
Electrode Material:     Titanium
Max Pressure/Temp Psig (bar) at °F (°C): 250 (17) at 200 (93)

Items delivered:

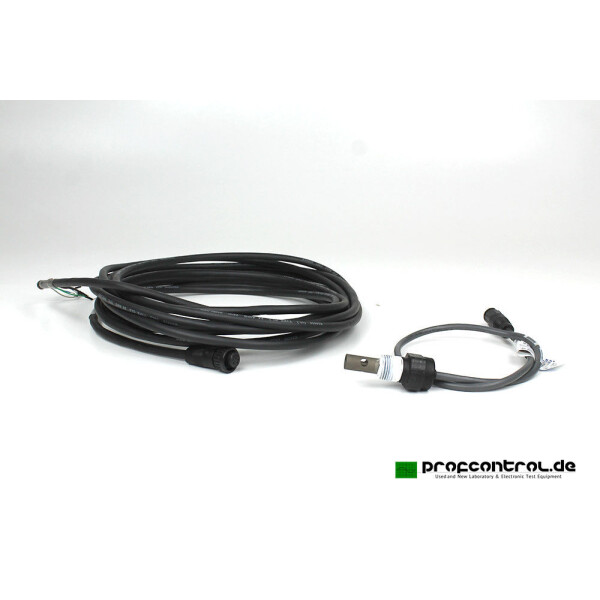

- Mettler / Thornton Conductivity/Resistivity Sensor

The Sensor is in good cosmetic condition and 100% functional tested.

Brand:	Mettler Toledo
Shipping weight:	10,00 kg
