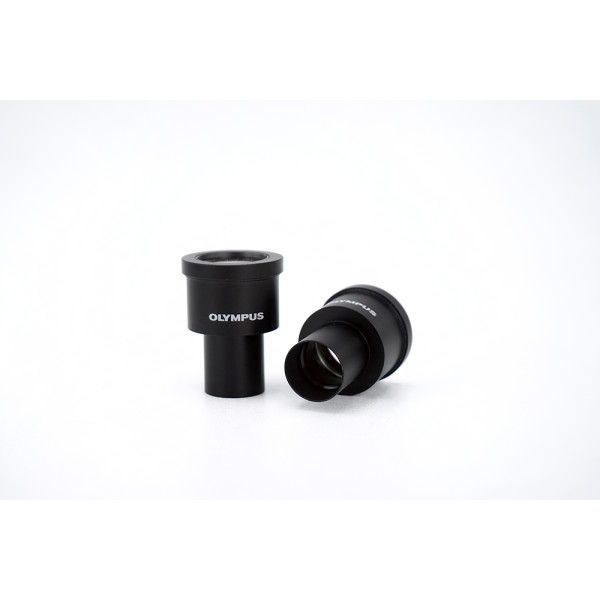

Manufacturer: Olympus
Model: 10x/20
Device Type: Microscope Eyepiece / Eyepiece
Description:
The Olympus 10x/20 microscope eyepiece is a high-quality wide-field eyepiece (WF) with 10x magnification and a large field of view diameter of 20 mm. Designed for professional applications in biology, medicine and materials research, it offers a clear, high-contrast image with excellent edge sharpness.
This eyepiece is compatible with a variety of Olympus microscopes and other 30 mm ocular tube diameter systems, ideal for demanding observations under light microscopes.
Specific details:
Magnification: 10x
Field Number (FN): 20 mm
Type: Wide-field eyepiece (WF)
Compatibility: For microscopes with 30 mm eyepiece tube
Areas of application: life sciences, laboratory, medicine, research, teaching
Technical details:
Optics: Multi-coated glass lenses for clear image reproduction
Tube diameter: 30 mm
Eyecup: Can be retrofitted without/optional
Dimensions (L x Ø): approx. 40 mm length × 30 mm diameter
Weight: approx. 50 g
Housing: Metal housing with engraved type designation
Condition:
The eyepiece is in very good used condition. The lenses are clear and free of scratches, and the housing shows only minimal signs of wear.
