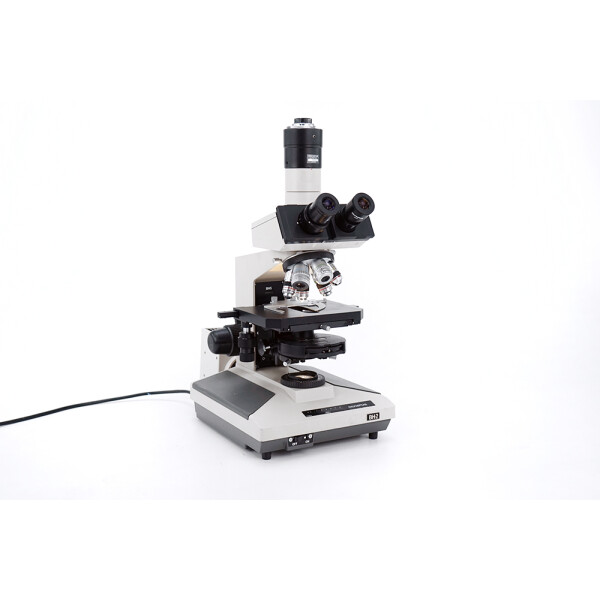

Olympus BH-2 Trinocular Upright Microscope Mikroskop SPlan 10PL 20PL 40PL 100PL

SKU: 9137

Category: Aufrechte Mikroskope

Currently out of stock

1927,09 $

Final price* , plus (Paket)

Olympus

Description
Notify me when this item is available

Manufacturer: Olympus

Model: BH-2 Trinocular Upright Microscope

Description:

The Olympus BH-2 is a proven and powerful trinocular microscope that is ideal for applications in biology, medicine, research and education. The trinocular tube with 100%, 50/50%, 0/100% light distribution and the integrated U-PMTVC camera adapter (C-mount) can be used for direct observation as well as for image capture and documentation.

The high-quality optics with SPlan plan lenses and the extensive phase contrast condenser allow flexible use with different contrast techniques.

Optical equipment:

Trinocular tube (100%, 50/50%, 0/100%)
Camera adapter: Olympus U-PMTVC (C-mount)
2x WHK 10x/20 L wide-field icons
6-fold lens turret with lenses:
SPlan 10PL - 10x / 0.30, 160/0.17
SPlan 20PL - 20x / 0.46, 160/0.17
SPlan 40PL - 40x / 0.70, 160/0.17
SPlan 100PL - 100x / 1.25 (oil), 160/0.17

Mechanics & lighting:

X-Y cross table with specimen holder
Phase contrast condenser with positions: PH1, PH2, PH3, BF (bright field), D (dark field)
Light source: 12V / 100W halogen for transmitted light
Power supply: 230 V, 50/60 Hz

Technical details:

Dimensions (W D H): approx 27 45 45 cm
Weight: about 12 kg
Material: metal housing, robust and low vibration
Adjustable feet: height-adjustable for stable alignment

Accessories:

dust cover

Condition:

Shipping weight:	30,00 kg
