Manufacturer: Olympus

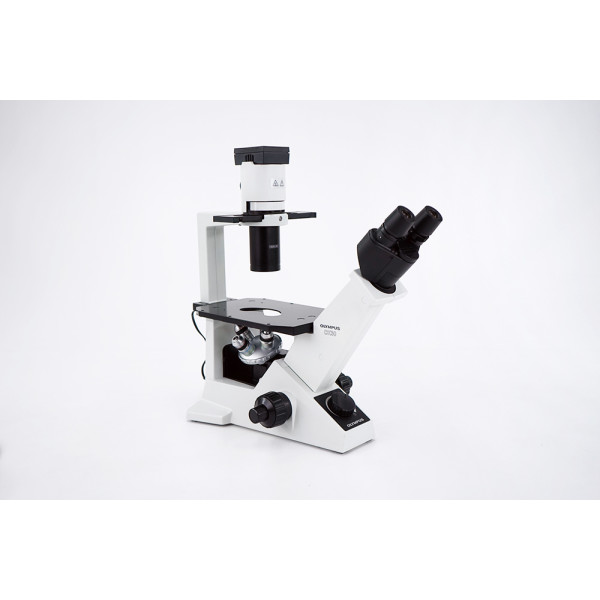

Model: CK30 Inverted Cell Culture Microscope
- incl. 2x NCWHK 10x/18 eyepieces
- incl. objectives
- 4x SPlan 4PL
- 10x A 10 PL
- 20x LWD C A20 PL
- 40x LWD CDPlan 40 FPL
Phase contrast slider
Description:
The Olympus CK30 is a high-quality inverted microscope specially developed for cell culture and microscopic examinations in biological and medical laboratories. Thanks to its inverted design, it is ideal for observing living cell cultures in Petri dishes and cell culture flasks. With 4x, 10x, 20x and 40x objectives, the CK30 enables detailed examination of cell structures, while the integrated phase contrast provides a clear and high-contrast image of transparent, uncolored samples. The robust construction and precise optics make this microscope a reliable tool for research and diagnostics.
Specifications:
Optical system: Infinite optical system for clear and precise images
Objectives: 4x, 10x, 20x, 40x (phase contrast)
Condenser: Phase contrast condenser with adjustable aperture diaphragm
Focusing: Coarse and fine drive for precise focusing
Illumination: Halogen illumination with adjustable intensity
Stage: Mechanical stage for easy handling of cell cultures
Eyepieces: Wide-field eyepieces for comfortable observation
Magnification: Up to 400x with phase contrast
Technical details:
Light source: 6V/30W halogen lamp
Power supply: 100-240 V, 50/60 Hz
Dimensions (W×D×H): Approx. 230 × 300 × 450 mm
Weight: Approx. 7.5 kg
Condition:
The microscope is in excellent cosmetic and working condition. It has been extensively tested and is ready for immediate use.
