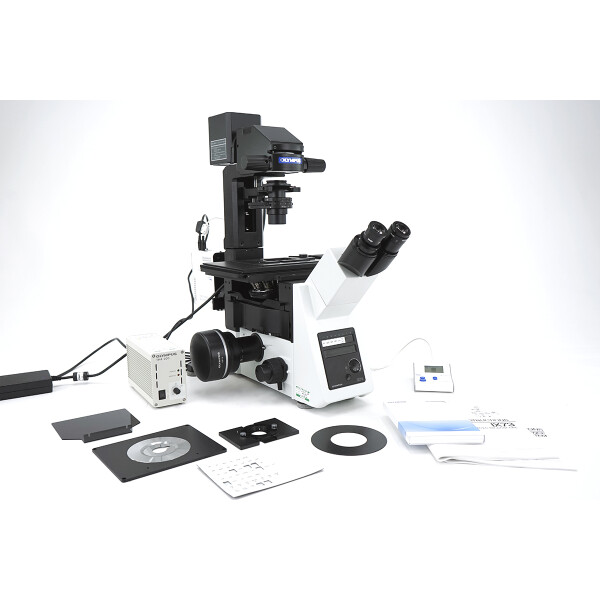

Olympus IX73 IX73P1F Inverted Fluorescence Microscope

SKU: 9272

Category: Inverse Mikroskope

Currently out of stock

17.255,00 €

Final price* , plus (Spedition)

Olympus

Description
Notify me when this item is available

Manufacturer: Olympus

Model: IX73 / IX73P1F

including TH4-200 power supply for microscope & halogen light source

Olympus IX3-HOS (slide holder)
Olympus IX3-HO35D (dish holder)
Olympus IX3-SVR (Mechanical stage with right handle)

Filter cube ET-DAPI (Chroma U-F49000)
Filtercube ET-EGFP (Chroma U-F49002)
Filter cube ET-CY3/R (Chroma U-F49004)
Filter cube ET-CY5 (Chroma U-F49006)
Filter cube ET-Gold FISH (Chroma U-F49304)

PlanApo N 1.25x/0.04 (UIS2)
UPlanFL N 4x/0.13 (UIS2)
UPlanFL N 10x/0.30 (UIS2)
LUCPlanFL N 20x/0.5 Ph1 (UIS2)
LUCPlanFL N 40x/0.60 Ph2 (UIS2)
LUCPlanFL N 60x/0.70 (UIS2)

DP74 Microscope Camera
U-TV0.63CX
CoolLED pE-300lite light source

CS-DVD-V3.2

Description:

The Olympus IX73 (model IX73P1F) is a high-quality, inverted fluorescence microscope designed specifically for demanding applications in cell culture, live cell imaging and fluorescence microscopy. As part of the Olympus IX3 series, this microscope offers a modular, open frame design that allows maximum flexibility while maintaining stability for precise imaging.

The IX73 supports a wide range of contrast settings, including phase contrast, fluorescence, DIC and more - and can be extended with motorized or manual components for automated image analysis. Ideal for life science research, pharmaceutical development and advanced cell analysis.

Specifications:

Type: Inverted fluorescence microscope
Model: IX73P1F (single-level frame)
Tube: trinocular, light-dividing (100%, 50/50%)
Lens turret: 6-speed, reverse

Lighting:

Fluorescence: including fluorescent illuminator (for example with LED or HBO lamp, depending on configuration)
Transmitted light: halogen lamp 12 V / 100 W or LED
Filter cubes: Blue, Green, possibly more (depending on version)

Objectives (typical):

4 , 10 , 20 , 40 (phase contrast or plan fluor)

Condenser: Removable, suitable for phase contrast and DIC
XY-Mechanism: Precise cross table with sample carrier
Camera connection: standard C-mount via U-tube / trinocular

Technical details:

Dimensions (approx.): 29 cm (W) 48 cm (D) 55 cm (H)
Weight (approx.): 20-25 kg (depending on configuration)
Power supply: 100-240 V, 50/60 Hz
Compatibility: Olympus CellSens software, third-party cameras and automation systems

Condition:

The microscope is in excellent condition, tested and fully functional.
