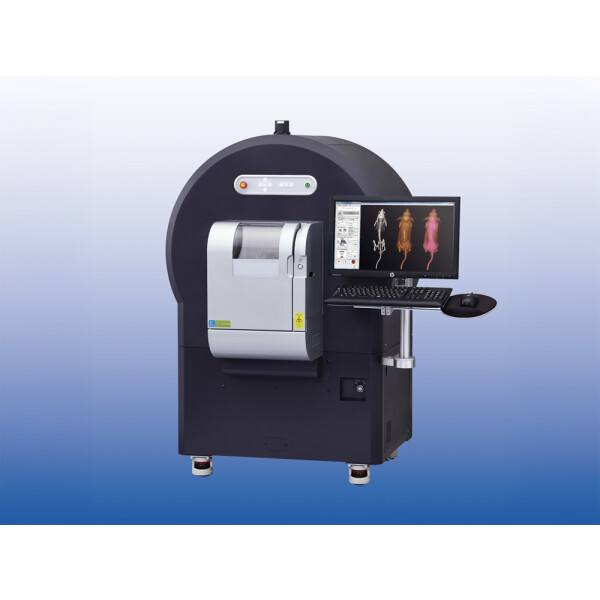

Perkin Elmer Quantum GX2-2-E Micro CT Imaging System / X-ray machine (2021) Model R_mCT2

SKU: 9275

Category: Sonstiges

Currently out of stock

35.105,00 €

Final price* , plus (Spedition)

Perkin Elmer

Description
Notify me when this item is available

Manufacturer: PerkinElmer

Model: Quantum GX2-2-E Micro CT Imaging System / X-ray machine (2021)

Type: R_mCT2

Description:

The PerkinElmer Quantum GX2-2-E is a state-of-the-art micro-computed tomography (CT) imaging system specifically designed for preclinical applications in in vivo imaging. With its model R_mCT2, the device provides high-resolution 3D x-rays of small animals or biological samples - ideal for research in oncology, bone research, toxicology and other biomedical disciplines.

Thanks to fast scan times, a large field of view (FOV) and flexible software integration, the system enables detailed volumetric reconstructions with minimal strain on the test animals. The integrated low-dose technology makes it particularly suitable for long-term studies.

Specifications:

Type of system: micro-CT/ computed tomography for preclinical imaging
Model: R_mCT2 (Quantum GX2-2-E)
Resolution: up to 4.5 μm (voxel based)
Scan time: From 8 seconds (depending on resolution and mode)
Field of view (FOV): up to 72 mm diameter 60 mm length
Detector: flat panel X-ray detector with high sensitivity

X-ray source:

Voltage: 20-90 kV
Current: 10-500 μA
Reconstruction: 3D volume with GPU-supported algorithm
Software: QuantumGX Workstation Software for image acquisition, analysis, export

Application areas:

In vivo small animal imaging
Bone and soft tissue supplies
Contrast media studies
Lung, heart, cancer and toxicological studies

Technical details:

Power supply: 100-240 V, 50/60 Hz
Dimensions (system): about 145 76 110 cm (W D H)
Weight: about 370 kg
Cooling: integrated air or water cooling
Network connection: Ethernet, USB 3.0

Condition:

The device dates back to 2021 and is in excellent, little used condition. The functionality has been tested successfully and the system is ready for immediate use.
