Manufacturer: Postnova Analytics

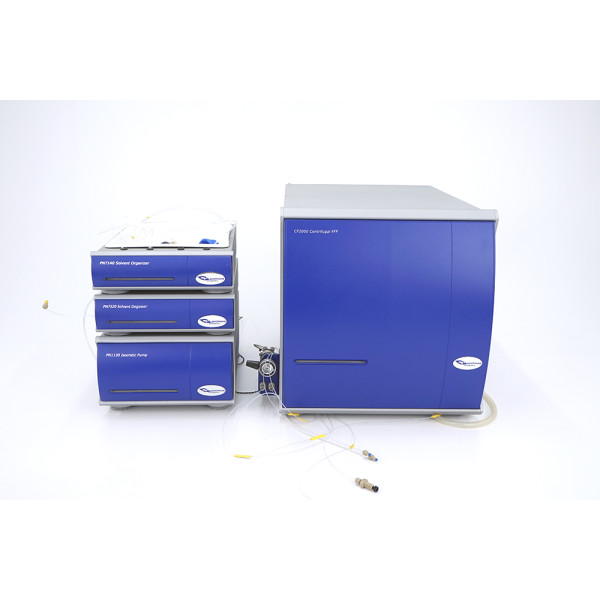

Model: CF2000 Centrifugal Field-Flow Fractionation (FFF) System + PN7140 + PN7520 + PN1130
S/N: 040810-001
incl.:
- CF2000 Centrifugal FFF
- PN7140 Solvent Organizer
- PN7520 Solvent degasser
- PN1130 Isocratic Pump
Description:
The Postnova CF2000 is a highly developed centrifugal field-flow fractionation (FFF) system for gentle and efficient separation of particles, colloids and nano objects in the size range from 5 nm to over 100 μm. Unlike classical centrifugation or chromatography, CF2000 technology uses a rotating field in a flat channel structure for field-based fractionation - without any stationary phase.
The system is offered here together with the modules PN7140 (UV/Vis detector), PN7520 (differential pressure sensor / flow control) and PN1130 (automatic injector / autosampler). In this configuration, the system is ideally suited for the analysis of pigments, polymer dispersions, biological nanoparticles, protein complexes, liposomes, vaccines and many other colloidal or particle-shaped samples.
The field-based separation enables very gentle analysis of sensitive samples - ideal for research and quality control laboratories with highest demands on accuracy and reproducibility.
Specifications:
Separation principle: centrifugal field-flow fractionation (CFFF)
Particle size range: about 5 nm to > 100 μm
Sample volume: typically 20-100 μL (depending on matrix and method)
Separation time: 10-30 minutes (depending on method)
Detection:
- PN7140: UV/Vis detector for online quantification
- PN7520: Flow control and monitoring (pressure control)
- PN1130: High precision injection system / autosampler
Applications:
Nanoparticle analysis
Proteinkomplexcharakterisierung
Polymer and colloid analysis
Pharmaceutical dispersions
Environmental and food research
Technical details:
Power supply: 100-240 V, 50/60 Hz
Control: Compatible with Postnova FFF software (Windows-based)
Interfaces: USB, Ethernet (system dependent)
Dimensions (total): 900 600 500 mm (depending on the construction)
Condition:
The system is in excellent cosmetic and technical condition.
