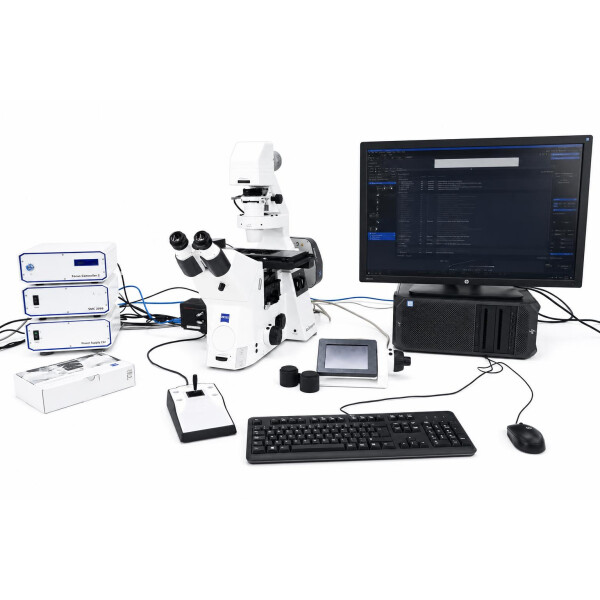

Zeiss Axio Observer 7 Inverted Microscope DIC Def. Focus Colibri 7 Zen Blue 3.3 License (2021)

SKU: 10817

Category: Inverse Mikroskope

Currently out of stock

34406,41 CHF

Final price* , plus (Spedition)

Zeiss

Description
Notify me when this item is available

Manufacturer: Zeiss

Model: Axio Observer 7 Inverted Microscope (Art. No. 431007-9904-000 WPP)

Serial Number: 3858000771

The Zeiss Axio Observer 7 is a fully equipped inverted research microscope of the latest generation, designed for demanding applications in cell biology, neuroscience, and biomedical research. The present system is equipped with the Colibri 7 LED fluorescence module (R/G/Y/C/B/V/UV), Zeiss Definite Focus.2 for automated focus control, and a Hamamatsu ORCA-Flash 4.0 sCMOS camera for scientific imaging. With five top-class Plan-Apochromat and LD C-Apochromat objectives (10x to 63x) and full motorized axis control, the system is optimized for automated multi-channel imaging and live-cell imaging. The ZEN Blue 3.3 software license enables comprehensive control of all system components and image analysis.

Technical Specifications

· Microscope base: Zeiss Axio Observer 7, art. no. 431007-9904-000 WPP
· Fluorescence module: Colibri 7 R(G/Y)CBV-UV
· Colibri 7 wavelengths: 385/450/495/555/590 nm etc.
· Focus system: Zeiss Definite Focus.2 (autofocus)
· Camera: Hamamatsu ORCA-Flash 4.0 C13440-20CU (4.0 MP, 16-bit sCMOS)
· Axis control: SMC 2009 (2-axis stepper motor controller)
· Software: ZEN Blue Edition v3.3.89.0003
· Joystick: Märzhäuser Sensotech 2-axis joystick CZ
· Year of manufacture: 2021

System Components

Axio Observer 7 Base
Inverted microscope base unit
S/N: 3858000771

Colibri 7 Illumination Module
LED fluorescence source R(G/Y)CBV-UV
S/N: 5445000381

Hamamatsu ORCA-Flash 4.0
sCMOS scientific camera
S/N: 201654

SMC 2009 Stepper Motor Controller
2-axis motor controller (middle box)
S/N: 17 46 12 005

Märzhäuser Joystick CZ
2-axis joystick controller
S/N: 1803152056

Equipment / Scope of Delivery

· Zeiss Axio Observer 7 inverted microscope
· Colibri 7 illumination module R(G/Y)CBV-UV
· Zeiss Definite Focus.2 autofocus system
· Hamamatsu ORCA-Flash 4.0 C13440-20CU sCMOS camera
· Focus Controller.2 (upper box)
· SMC 2009 stepper motor controller 2-axis (middle box)
· Power Supply 232 (lower box)
· Märzhäuser Sensotech 2-axis joystick CZ
· Objective Plan-Apochromat 20x/0.8
· Objective Plan-Apochromat 40x/0.95 Corr UV-VIS-IR
· Objective LD C-Apochromat 40x/1.1 W Corr UV-VIS-IR
· Objective Plan-Apochromat 63x/1.4 Oil DIC
· Objective Plan-Neofluar 10x/0.3 Ph1
· 5x filter cubes for Colibri 7 (450/495/560 nm etc.)
· Carl Zeiss eyepieces (art. no. 444036-9000)
· Magnification changer (55–75)
· Software ZEN Blue Edition v3.3.89.0003 (license)
· PC with Intel64 Family 6 Model 85 Stepping 4

Condition

The unit is in very good condition (manufactured 2021) and ready for immediate use.

Shipping weight:	250,00 kg
