Zeiss Axio Observer Z1 Microscope Colibri 7 Axiocam 820 807 2023

SKU: 9824

Category: Inverse Mikroskope

Currently out of stock

29.750,00 €

Final price* , plus (Spedition)

Description
Notify me when this item is available

Manufacturer: ZEISS

Model: Axio Observer Z1 / Axio Observer 7 IVD – Inverted Research Microscope with Colibri 7, Axiocam 807 & 305, Apotome 3 (Year 2023)

Serial / Details:
Axio Observer 7 IVD
S/N: 3869010815
P/N: 431007-9904-000
Year of Manufacture: 2023-08-21

Description:

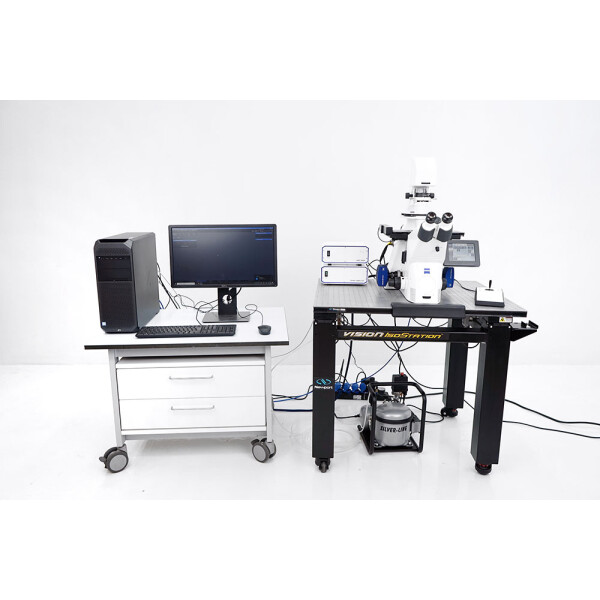

The ZEISS Axio Observer Z1 / Axio Observer 7 IVD is a state-of-the-art inverted research microscope designed for demanding applications in cell biology, fluorescence microscopy, and live-cell imaging. In this extensive configuration, the system features the powerful Colibri 7 multispectral LED light source, multiple fluorescence filter sets, motorized components, a Märzhäuser scanning stage, and the ZEISS Apotome 3 for optical sectioning.
Two high-performance ZEISS cameras (Axiocam 807 Mono and Axiocam 305 Color) enable high-resolution, sensitive imaging. The system is supplied with a powerful HP Z6 workstation with pre-installed ZEN pro software and is mounted on a Newport Vision Isolation Air Table for vibration-free operation. Ideal for modern research and development environments.

Specifications:

Microscope type: inverted research microscope (IVD)
Transmitted light: VIS LED 5600K
Fluorescence illumination: Colibri 7 multispectral LED
Cameras: ZEISS Axiocam 807 Mono, ZEISS Axiocam 305 Color
Contrast methods: fluorescence, phase contrast, brightfield, optical sectioning (Apotome 3)
Operation: motorized components, software-controlled (ZEN pro)
Application areas: cell biology, live-cell imaging, fluorescence analysis, research

Technical Details:

Optical system: ZEISS ICS optics

Eyepieces:
2× ZEISS Pl 10×/23 Br (444036-9000)

Objectives:
ZEISS Plan-Apochromat 10×/0.45 (P/N 420640-9900)
ZEISS Plan-Apochromat 20×/0.80 (P/N 420650-9903)
ZEISS Plan-Apochromat 63×/1.4 Oil DIC

Condenser:
NA 0.55, WD 26 mm including phase contrast rings PH1, PH2, PH3

Cameras:
ZEISS Axiocam 807 Mono Rev. 1.1 (P/N 426560-9160-000)
incl. 60N-C 1″ 1.0× adapter (426114)

ZEISS Axiocam 305 Color R2 (P/N 426560-9031-000)
incl. 60N-C 1″ 1.0× adapter (426114)

Transmitted light source:
VIS LED 5600K Light (423053-9030)

Fluorescence light source:
Colibri 7 light source incl. FR-R(G/Y)BV-UV (P/N 423052-9770-00)

Fluorescence filter cubes:
Filterset 96 HE
Filterset 38 HE
Filterset 43 HE
Filterset 50 HE
Filterset 64 HE

Scanning stage:
Märzhäuser motorized scanning stage with digital joystick

Optical sectioning:
ZEISS Apotome 3

Workstation:
HP Z6 Power Workstation
Pre-installed software: ZEISS ZEN pro V3.8.99.04000
Graphics card: NVIDIA
USB 3.0 interface card for both cameras

Vibration isolation:
Newport Vision Isolation Air Table

Power supply: 100–240 V AC, 50/60 Hz
Weight: approx. 120–150 kg (complete system incl. table, configuration-dependent)
Dimensions: approx. 1800 × 900 × 2000 mm (W × D × H, incl. air table, configuration-dependent)

Condition:

The ZEISS Axio Observer Z1 / Axio Observer 7 IVD microscope system is in excellent working condition (manufactured in 2023) and ready for immediate use in high-end microscopy applications.

Shipping weight:	400,00 kg
