Manufacturer: Zeiss
Model: AxioLab 5 Fluorescence Microscope with Axiocam 305 mono
Serial Number: 3195000038

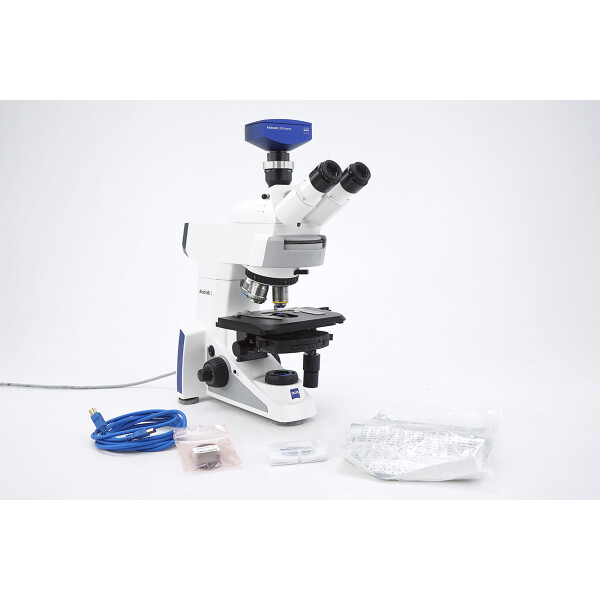

The Zeiss AxioLab 5 is a modern fluorescence microscope for routine and demanding imaging in cell biology, histology, and materials science. The ergonomic upright microscope combines phase contrast optics with fluorescence capability (DAPI, FITC, Rhodamine/TRITC) and offers a broad magnification range with three high-quality Plan-NEOFLUAR objectives. The high-resolution Zeiss Axiocam 305 mono camera delivers precise 5-megapixel monochrome fluorescence images. The system is ready for immediate use and comes complete with adapter and software.
Technical Specifications
· Microscope type: upright fluorescence microscope
· Fluorescence channels: DAPI, FITC, Rhodamine/TRITC
· Contrast: phase contrast (Ph1, Ph2)
· Camera: Zeiss Axiocam 305 mono, 5 MP
· Camera adapter: 60N-C 2/3" 0.63x (cat. no. 426113)
· Objectives: 10x Ph1, 20x Ph2, 40x Ph2
System Components
Zeiss AxioLab 5 Microscope
Upright fluorescence microscope with phase contrast equipment
S/N: 3195000038
Zeiss Axiocam 305 mono
Monochrome 5 MP camera for fluorescence imaging
Camera adapter 60N-C 2/3" 0.63x
C-mount adapter (cat. no. 426113)
Equipment / Scope of Delivery
· Zeiss AxioLab 5 microscope (S/N: 3195000038)
· Zeiss Axiocam 305 mono camera
· Camera adapter 60N-C 2/3" 0.63x (426113)
· Objective EC Plan-NEOFLUAR 10x/0.3 Ph1 (420341-9911)
· Objective LD Plan-NEOFLUAR 20x/0.4 Corr Ph2 (421351-9972)
· Objective LD Plan-NEOFLUAR 40x/0.6 Corr Ph2 (421361-9971)
Condition
in good used condition, fully functional
