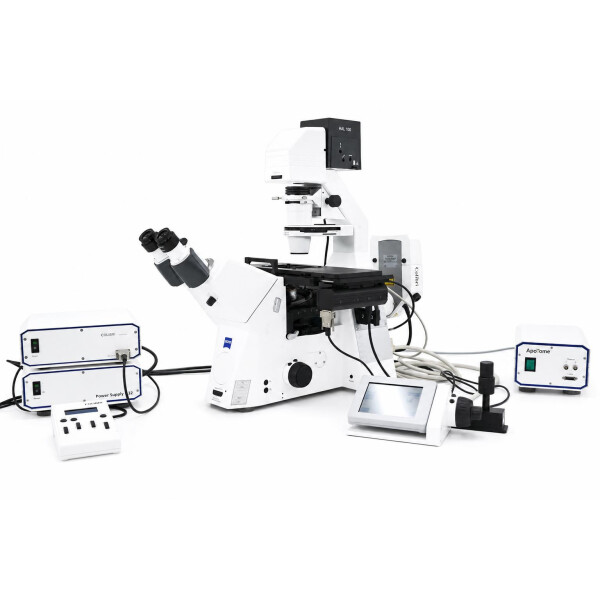

Zeiss Observer Z1 Inverted Fluo DIC II III Microscope All Motorized Colibri ApoTome

SKU: 10700

Category: Inverse Mikroskope

Available immediately
Delivery time: 2 - 3 Workdays (DE - int. shipments may differ)

25.585,00 €

Final price* , plus (Paket)

Zeiss

pcs

Description

Manufacturer: Zeiss

Model: Axio Observer Z1 (Inverted Fluorescence Microscope, fully motorized with ApoTome and Colibri)

Serial Number: 3834003394

The Zeiss Axio Observer Z1 is a powerful, fully motorized inverted fluorescence microscope designed for demanding cell biology and live-cell imaging applications. The system features a motorized filter turret, motorized objective turret, motorized X-Y stage, and motorized Z-drive for reproducible and automatable image acquisition. The integrated ApoTome module enables high-resolution optical sectioning using structured illumination. The Colibri LED fluorescence illumination with 365 nm (UV) and 455 nm (blue) modules provides fast, gentle, and long-lasting fluorescence excitation. The microscope additionally offers DIC II/III and phase contrast PH1/PH2/PH3 for versatile transmitted-light contrast methods.

Technical Specifications

· Objective Plan-Apochromat 5x/0.16
· Objective EC Plan-Neofluar 10x/0.30
· Objective LD Plan-Neofluar 20x/0.40 Korr Ph2 (incl. DIC slider)
· Objective LD Plan-Neofluar 63x/0.75 Korr (incl. DIC slider)
· Objective Plan-Apochromat 63x/1.40 Oil (incl. DIC slider)
· DIC prisms II and III in the condenser
· Phase rings PH1, PH2, PH3
· Filter cubes/sets: 09, 15, 49, DIC ACR, ApoTome Calibration, H Epi Brightfield
· 6-position motorized fluorescence filter turret
· HAL 100 halogen transmitted-light illumination

System Components

ApoTome Module (Controller)
Structured illumination
S/N: 4620001327

Colibri Controller
LED control unit
S/N: 5419001189

Colibri Light Source
LED fluorescence module (365 nm + 455 nm)
S/N: 5420000247

AxioCam MRc
Color camera

Equipment / Scope of Delivery

· Transport case with 3 spare ApoTome grids
· Touchpad controller
· Handheld controller
· Power supply 232
· AxioVision DVD 3.6 and ZEN Pro 2011 incl. USB dongle
· Note: no ZEN Blue license and no Zeiss workstation PC included

Condition

The system is in good used condition and fully functional. All motorized functions (filter turret, objective turret, X-Y stage, Z-drive, ApoTome) have been tested and work flawlessly.

Shipping weight:	125,00 kg
